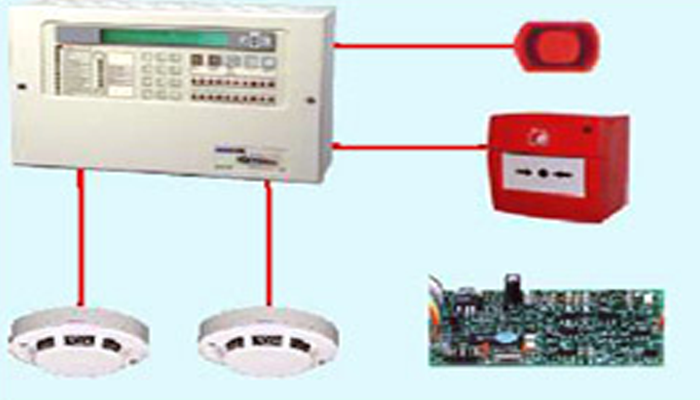

A conventional fire alarm system will use fire detection zones (wired back to the main control panel). Each zone will identify a particular area of the building in order to identify the location of a fire.
Each zone can consist of various devices, including automatic smoke/heat detectors, manual call points, sounders and strobes. In the event of a fire being detected either automatically or manually, the system control panel will then operate the alarm.
The term “Clean Agent” is defined as an
“Electrically nonconductive, volatile, or gaseous fire extinguishant that does not leave a residue upon evaporation”.
Using water to extinguish a fire is not always the ideal choice
when you are trying to protect critical assets such as IT systems, data storage rooms and manufacturing equipment, or irreplaceable items like customer/client records, intellectual property, art, antiques and artifacts – using water will just compound the damage. Using a Clean Agent fire suppression system in this case is the best solution.

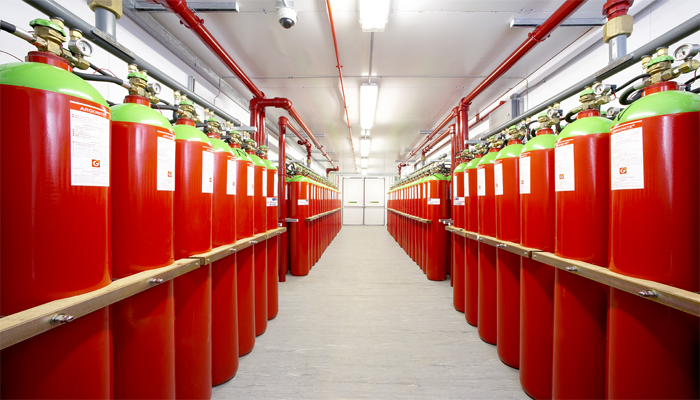

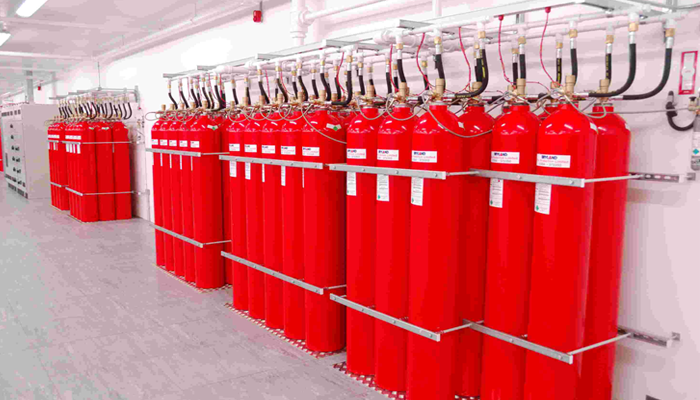

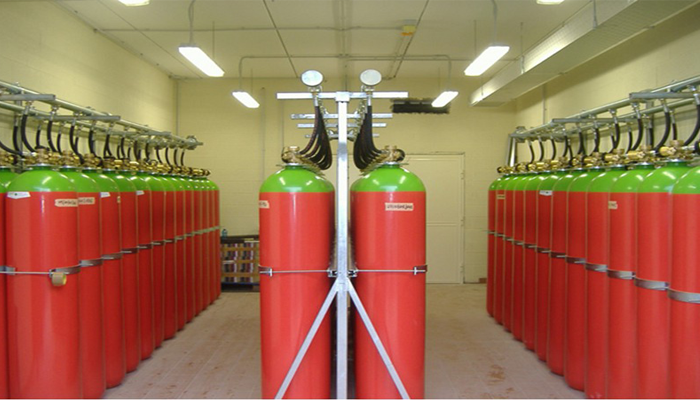

Novec 1230, FM-200 and Argonite, Inergen, nitrogen are some of the Clean Agent fire suppression systems of Approved Protection Systems.
There are 3 ways clean agents extinguish a fire in three ways :
• Reduction of heat
• Reduction or isolation of oxygen
• Inhibiting the chain reaction of the above components
Clean Agent systems reach extinguishing levels in 10seconds or less.
Clean Agents are designed to control and extinguish a fire in its incipient stage – before it has a chance to spread. Clean Agents are electrically non-conductive and non-corrosive, and there will be no damage to electronics and delicate mechanical devices.
Clean Agents are designed to provide a wide margin of human safety – they are safe to use where people are present.
Clean Agents rapidly vaporizes to gas during discharge and evaporates cleanly, leaving no residue behind, which means no costly cleanup.
Clean Agents are non-ozone depleting and have a short atmospheric lifetime.

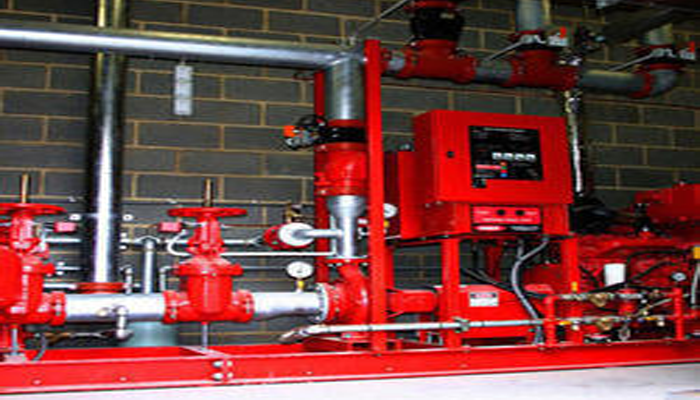

An automatic sprinkler system is intended to detect, control and extinguish a fire, and warn the occupants of occurrence of fire. The installation comprises fire pumps, water storage tanks, control valve sets, sprinkler heads, flow switches, pressure switches, pipe work and valves. The system operates automatically without human intervention. Each sprinkler head contains a glass bulb or a fusible link. The bulb contains a liquid and a quantity of vapour. The liquid expands under the influence of heat as do the fusible link heads. When the temperature reaches a certain predetermined level – typically at 68 /79 Degree Centigrade – it will expand the liquid and break the bulb or fusible link, which in turn releases water directly onto the seat of the fire.

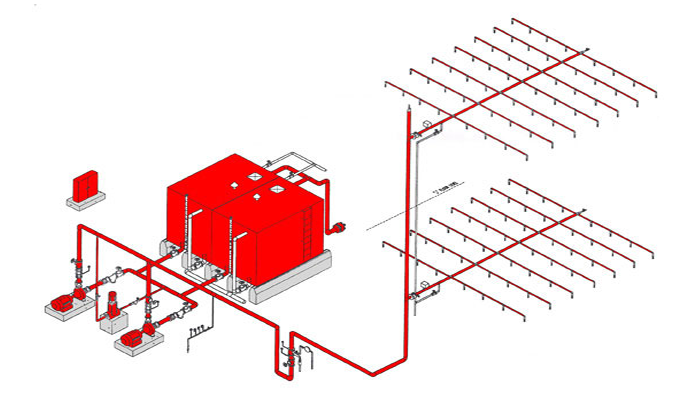

The hot gases from a fire will make the sprinkler operate. A fire creates a narrow plume of hot air and gasses that rise to the ceiling and spread out. These hot gasses activate the sprinkler head at the correct temperature. The installation is the most common type and a typical sprinkler installation is shown in figure.

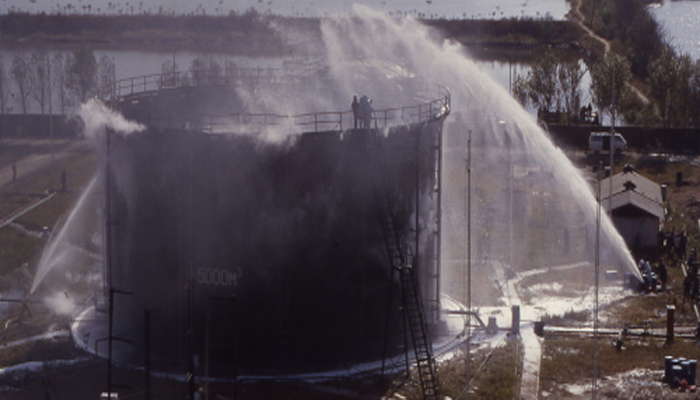

This system works uniquely effective against fire hazards involving heavy or medium oil.
This systems operates using the specifically designed nozzles depending on the fire area, requirement of shape of spray cone and the water flow.
This system has capacity to reach to the surface of burning oil penetrating the flame zone .This results into most important phenomenon called ‘Emulsification’ i.e. formation of the noncombustible emulsion layer of oil-water on the surface of the burning oil. This emulsification along with the cooling smothering effects extinguishes the fire.
High Velocity Water Spray Systems also can be used to protect :

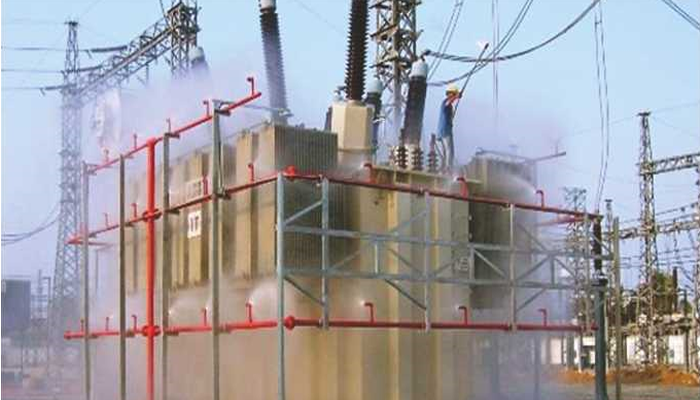

• Power Circuit Breakers & Power Transformers
• Boiler Burner Fronts

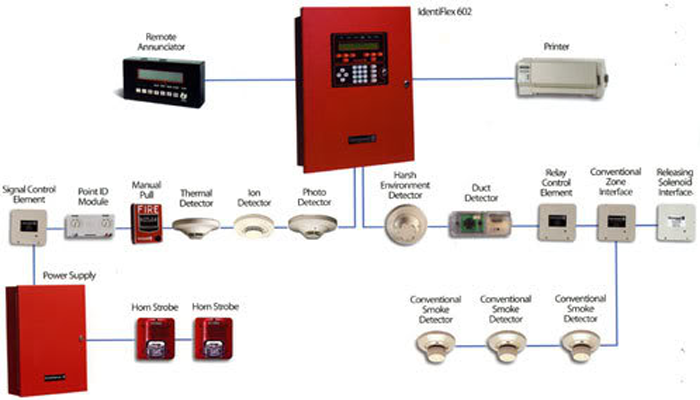

Addressable fire alarm systems are more advanced than conventional systems and offer a larger scope of programming flexibility, with each device in the system having its own individual address and specific location. An addressable fire alarm system is made up of a series of fire detectors and devices that are connected back to a central control panel.With addressable systems, each device has an address or location, enabling the exact detector that was triggered to be quickly identified. This makes addressable alarm systems ideal for large buildings, particularly commercial premises spread over a wide area.
• Addressable fire alarms are more reliable than conventional
• Cost of wiring up alarm system is cheaper.
• Reduce false fire alarms.
• Monitoring and checking all individual fire detectors for faults.
• Fire alarm systems are programmable to meet requirements of project.
• Quickly determine the location of a fire.
• Ability to monitor integrity of the system, with detector health checks.

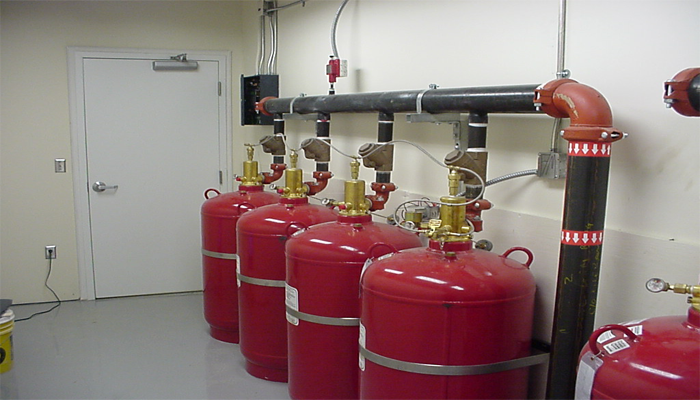

Carbon dioxide or CO2 is a colorless, odorless, electrically non-conductive gas that is highly efficient as a fire suppression agent. Carbon Dioxide fire protection systems use intelligent, reliable and fast-acting control panels to quickly sense a fire before it can cause damage to property. Carbon dioxide gas has a high rate of expansion, which allows a CO2 fire protection system to work fast.When applied to a fire, CO2 provides a heavy blanket of gas that reduces the oxygen level to a point where combustion cannot occur. Since carbon dioxide is a gas, there is no clean-up associated with a CO2 fire suppression system discharge. CO2 fire suppression system is extremely versatile and effective on a wide range of flammable and combustible materials and approved for Class A, B and C hazards.
Carbon Dioxide fire protection systems are available for use in total flooding or local fire protection applications – making it an effective fire protection system for a wide variety of hazards.
• Engine rooms
• Mixing operations
• Spray booths
• Dust collectors
• Turbine-driven generators
• Electrical areas
• Liquid storage areas
• Quench tanks

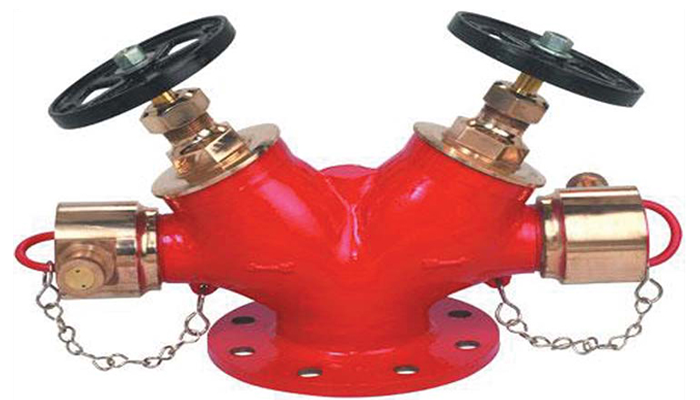

Fire Fighting Hydrant Systems are the most commonly used systems, in many residential and industrial projects. Fire Hydrant Systems forms the basis, of Fire Protection Systems, without Fire Hydrant System a Fire Protection System cannot be called a Fire Protection System. It will be a superficial system. (With respect to large areas, in general). Fire Hydrant System installation is relatively easy.
Water is stored in a water tank throughout the year for 365days. This water tank is connected to the pump room. From the pump room, there are two to three main pipes. These pipes form a network of pipe which is always kept pressurized, covers the factory compound and the factory. The pressure is Approx. 7bar to 10bar.When a fire is seen by a person, he opens a hydrant outlet to activate the hydrant system and points hose stream in the direction of the fire. A very strong flow of water (900 LPM approx.) now, attacks the fire and the fire is eventually extinguished. The pump continuously pumps the water to maintain the system pressure.
Fire Hydrant Systems are very strong and can be used from medium to large sized fires. Fire Hydrant Systems, have a long range. Since the Fire Hydrant System is spread out, the fire hydrant can attack fire from different angles. This entire systems requires low maintenance and virtually, does not leak water. Besides this, Fire Hydrant Systems have a long life. Fire Hydrant System, may cause damage to the instruments or machines. Fire Hydrant systems are very popular and hence many Clients search only for Fire Hydrant Companies or Fire Hydrant System / Suppliers; but the important thing to understand is that it alone may not be the most efficient system.

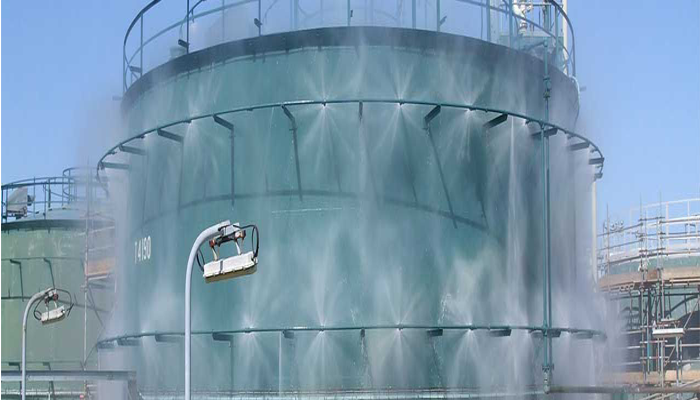

Medium velocity water spray sprayers provide a continuous water spray with medium velocity consisting of finely divided water droplets. These systems are ideal in fighting against the fire involving light oils. As emulsification is not possible in this case, the high velocity water spray systems cannot work in this type of fire. These systems sprayers are mostly used in combination with the other effective fire protection systems. The specifically designed nozzles produce a cooling spray which has very high capacity to absorb the heat.This water jet is sprayed on the adjacent plants and structures which ultimately minimizes the damage and the risk of explosion.
Fire suppression foam is comprised of three parts: foam concentrate, water, and air. When mixed correctly, these parts form a homogeneous foam blanket that extinguishes flames by the combined mechanisms of cooling, separating the flame source from the product surface, suppressing vapors, and smothering. This makes foam suppression systems an effective option for protecting flammable and combustible liquids.
Fixed foam generators apply foam onto the fuel surface to create a foam blanket and suppress the vapours. The positioning is such to minimise the possibility of damage to the equipment from an explosion or fire. Subsurface injection products inject foam into the bottom of a fuel tank and allow it to float to the surface to spread and extinguish the fire. This method became feasible with the development of foams resistant to fuel contamination.
• Hydrocarbons bulk storage
• Petrochemical processing facilities
• Polar solvent liquid storage
• Aviation fuel storage
• Aircraft Hangers
